MOVE19 Innovative system

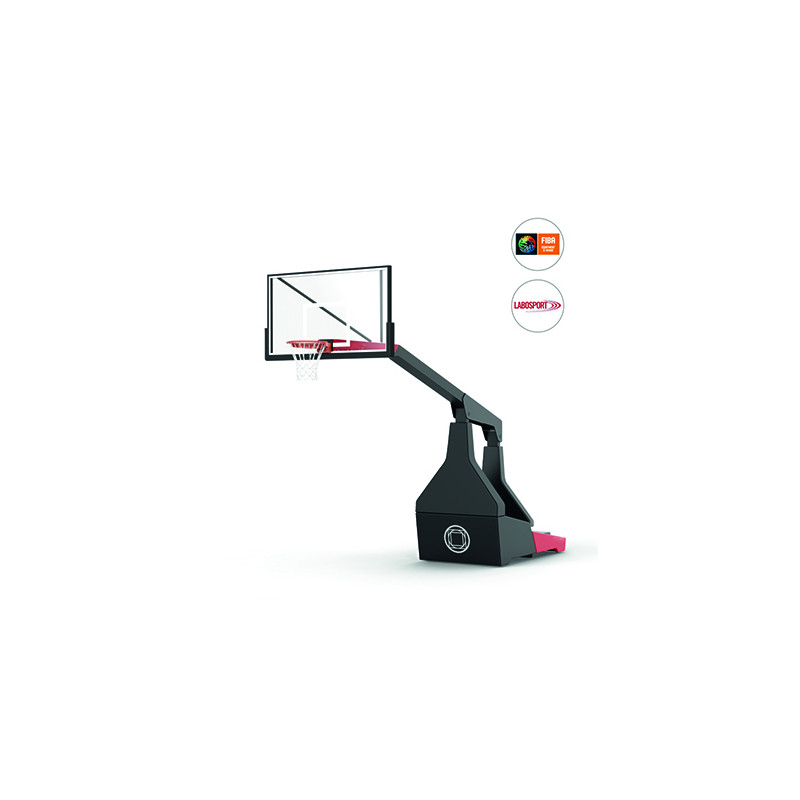

MOVE19 oleodinamic basketball facility, overhang cm.330, FIBA approved


Manual or electric hydraulic basketball facility,  FIBA approved 1 ° level,  330 cm overhang, consisting of a heavy base in tubular section 120x80 size 200x110 cm, front and rear vertical uprights in tubular 180x80 suitably braced, upright support to the billboard section 200x150, all hinged and assembled with lower pins diam. 20 and above diam. 25, external steel ferrules. The system is supplied with 12 mm thick tempered glass display boards with safety film, front and rear protections in 10 cm thick high-density rubber covered in washable PVC, protection of the monotubular pole for a depth of 120 cm from the back of the display board, protections under the basket, reclining basket with springs as per rules and regulations. The facility is equipped with 2 front wheels diam. 200 mm swiveling and 2 fixed transpallet rollers on the back. Ballast included. Structure tested according to UNI EN 1270 and F.I.B.A. 1° level. Total weight of the single truss 1400 kg. Useful space for entering the gym 480 cm from the endline.

Manual version: Manual hydraulic system for lifting / lowering the structure consisting of a piston diam. 70 mm with rod diam. 35 mm, manual pump with aluminum tank equipped with removable rod, non-return valve mounted directly on the piston.

Electrical version: oil pressure functioning by hydraulic ram diam. 70 mm with rod diam. 35 mm, tank, motor flange joint, distributor with removable pump rod, close check valve directly mounted on the ram to stop the stroke at certain point and guarantee the maintenance the position of basketball facility.

FIBA Labosport
Operation: Electrical
