Beech planks for bleachers

Fixed modular grandstand for outdoor use, supporting structure in tubular and corner steel of adequate section, calculated as per standards and Ministerial Decree In force for a load of 500kg / m2, walking surfaces in non-slip galvanized sheet metal, seating surfaces in fireproof plywood alternatively with seats. Dimensions and features on request.

Fixed modular grandstand for inside use, structure in tubular steel painted with epoxy powders of appropriate section, vertical legs with recesses for attachment of support surfaces and stairways, rear reinforcement crosses, front plugging in painted press-bent sheet metal, decking in fireproof phenolic bonded plywood according to the law, seat surface in class 1 fireproof plywood or alternatively with polypropylene seats, side and rear parapets in painted steel height 110 cm. Dimensions and features on request.

Telescopic grandstand certified according to the regulations and DM in force at 500 kg / m2. Supporting structure in steel of appropriate section, sliding wheels in polyamide, walking surfaces in class 1 fireproof plywood, fronts in fireproof wooden material, side and rear parapets height 110 cm which always remain in position without having to be removed when closing. Seats with a choice of polypropylene seats or completely wooden. Manual locking and unlocking system that can be easily operated by means of a retractable handle. Tread 70/75 cm raised 34/38 cm for a maximum depth in closed position of 130 cm. Possibility of motorization of the grandstand with self-centering motors.

Modular stage for events, walking surface in birch plywood, colors to choose from mahogany, yellow or red. The stage has a range of static 600/kg/mq. Certificate in accordance with the regulations. Standard dimensions cm. 200x200, on request dimensions cm. 200x100 or cm. 100x100.

Steel barrier in hot zinced steel, connectable and stackable with fixed feet.

Dividing curtain for gyms, consisting of a load-bearing structure anchored to the roof beams with special devices, 380V electric motor with gear electro-brake safety factor F = 2; on the two sides of the beam there are 2 electromechanical safety brakes, double PVC sheet of 900 g / m2 full height. Possibility of combined curtain with PVC sheet up to a height of 2.6 m while a square mesh net is positioned on the upper part. Upper structure for the winding of the awning in painted steel. Color of the fabric and structure to be chosen from among the available. Dimensions on request. Documentation: TUV DIN 18032/4 CERTIFICATE for the system EN 13501-1 CERTIFICATE for the PVC sheet

Modular public/athletes dividers in according to UNI EN 13200-3, height 110 cm including n.1 hot zinced post section 70 x 20 mm + n ° 3 horizontal elements in round section 48 mm. Possibility of executing pedestrian gates with latch closure. Installation with ground plate or with ground sleeves. The dividers can be protected with shockproof material according to UNI EN 913 (on request). Other dividers can be made with steel, glass or plexiglass infill.



Small stand for 8 people

Small stand for 4 people

Access staircase for small stand, strucutre in hot zinced steel, width 80 cm,

Small tribune lenght m. 2 m arranged on 3 rows, seat in polypropylene with fireproof backrest cl 1, plywood walking surfaces (other walking surfaces on request), rear wheels for quick overturning and storage in the warehouse. Capacity 12 seats, length 2 m, depth 1.90 m.

Small tribune lenght m. 2 m arranged on 2 rows, seat in polypropylene with fireproof backrest cl 1, plywood walking surfaces (other walking surfaces on request), rear wheels for quick overturning and storage in the warehouse. Capacity 8 seats, length 2 m, depth 1.20 m.

Step in galvanized steel or in varnished steel for compact stand S101, length cm. 80

Seat without backrest in colored polypropylene, finish with anti-ultraviolet light resistance treatment, reaction to fire class 1 according to the regulations in force issued by the Ministry of the Interior. Dimensions cm. 40 x 35 x 11.

Seat with high backrest in colored polypropylene, finish with anti-ultraviolet light resistance treatment, reaction to fire class 1 according to the regulations in force issued by the Ministry of the Interior. Dimensions cm.44 x 35 x 35.

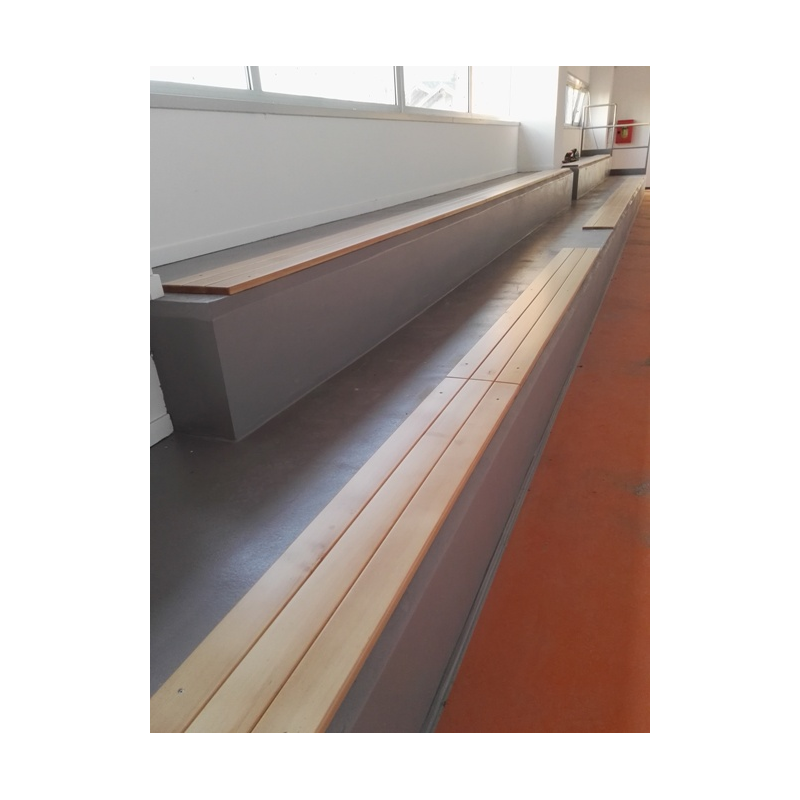

Covering for grandstand steps, in varnished beech wood planks. Width cm. 30, thickness cm. 3
